FRACSAL MS
DESCRIPTION

Fracsal MS is a concentrated borate solution that is used to crosslink guar and derivatized guar-based fracture fluid systems. Fracsal MS is added continuously during the fracturing fluid pumping operation. Fracsal MS produces a unique gel structure downhole that is elastic and thermally stable. This product exhibits improved sand transport into fractures, and the ability to re-heal itself and form a stable gel structure after shearing.

FEATURES
  • Allows for a simple addition of product for batch or continuous mixed systems
  • No performance difference when used in sea water fracturing formulations
  • Performs in various aqueous-based polymer systems
  • Produce a fluid with superior leak-off control without addition of hydrocarbon and silica flour additives
  • Allows for precise control of desired pour points
  • Non-damaging to the resevoir
  • May be modified to meet customer requirements

PHYSICAL PROPERTIES AND ENVIRONMENTAL DATA
Product Fracsal MS
Appearance: Clear liquid
Specific Gravity: 1.02
pH @ 20°C 13.87
Pour Point, ASTM D97: 0°C (32°F)
Solubility: Water
LC50, 96-hour: 1,000,000 ppm
Chemical Oxygen Demand: <20 mg/L
Biological Oxygen Demand: <2.0 mg/L
BTEX, S.W. 8260: Below detection limit of 1 ppb

Microtox Test Results:
Vibrio Fischeri

Product Test EC20 EC50 PASS/FAIL
Fracsal MS MTX - Threshold
MTX- Confirmation
@ 360 L/m­­­­³		 190 L/m³ (190-200)
66% (26 - 91)		 360 L/m³ (360-360)
91% (N/A)		 Not applicable
PASS

Refer to MSDS for handling and storage instructions.

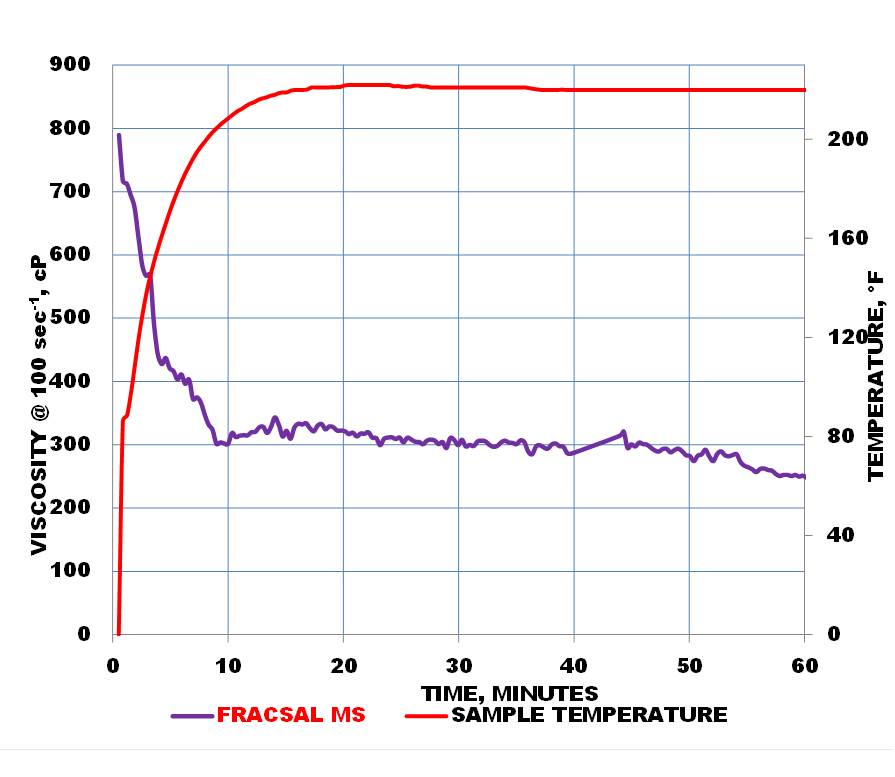

VISCOSITY VERSUS TIME

VISCOSITY VERSUS TIME TEST PARAMETERS
Guar Base: 2% KCl
Polymer Concentration: 25lb/1,000 gal
pH: Not adjusted
Final pH: 11.3
Viscosity, 300 rpm: 20 - 23 cP
Crosslinking Additive Concentration: 2.5 gal/ 1,000 gal
Temperature: 107.2°C (225°F)
Pressure: 400 psi

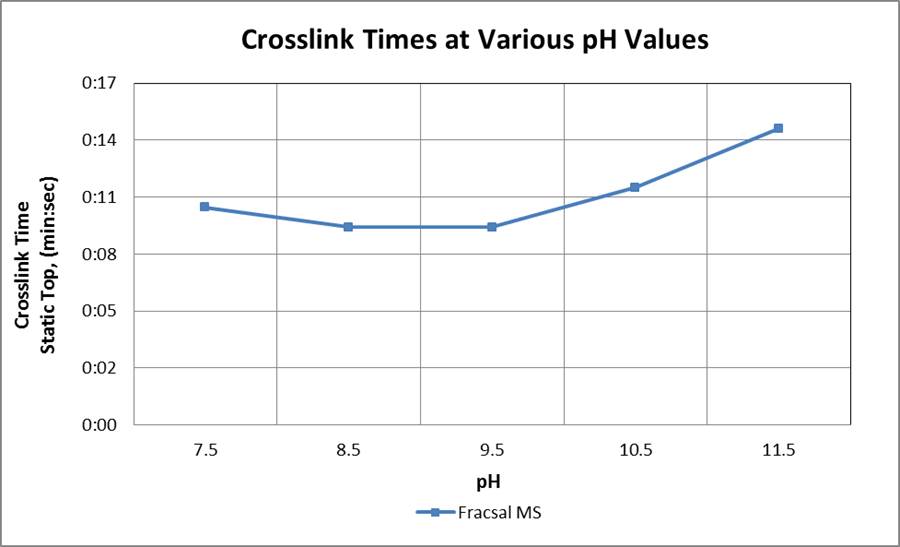

CROSSLINK TIMES AT VARIOUS pH VALUES


pH 7.5 8.5 9.5 10.5 11.5
Static Top, min:sec 0:11 0:10 0:10 0:12 0:15

CROSSLINK TIME TEST PARAMETERS
Guar Base: Fresh Water
Polymer Concentration: 40lb/1,000 gal
pH, adjusted with NaOH: 7.5 - 11.5
Viscosity, 300 rpm 38-42 cP
Crosslinking Additive Concentration: 2.0 gal/ 1,000 gal
Temperature: 25°C (77°F)
