FRACSAL I
DESCRIPTION
Fracsal I crosslinking additive consists of a specifically sized, sparingly-soluble borate crosslinking agent suspended in a hydrocarbon based carrier fluid. A standard concentration for Fracsal I is 1.0 gal per 1,000 gal of fracturing fluid with crosslink times ranging from 2 to 3 minutes depending upon the pH, temperature, and type of polymer-based fracturing fluid system. Fracsal I packaging can be customized to meet specific requirements.
PHYSICAL PROPERTIES AND ENVIRONMENTAL DATA
| Appearance: |
Tan Liquid |
| Specific Gravity: |
1.15 - 1.20 |
| Pour Point, ASTM D97: |
-12°C (10°F) |
| Flash Point, ASTM D93: |
31.3°C (88°F) |
| Solubility: |
Dispersible in water |

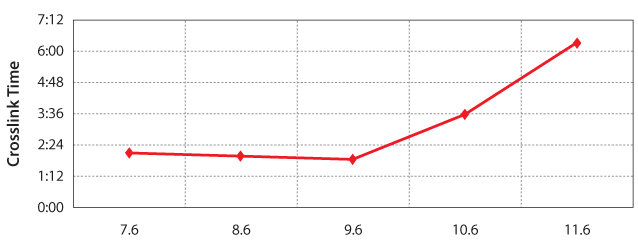

CROSSLINK TIMES AT VARIOUS pH VALUE
| pH |
7.6 |
8.6 |
9.6 |
10.6 |
11.6 |
| Static Top, min:sec |
2:05 |
2:00 |
1:54 |
3:32 |
6:23 |
|
CROSSLINK TIME TEST PARAMETERS
| Guar Base: |
2% KCl |
| Polymer Concentration: |
40 lb/1,000 gal |
| pH, adjusted with NaOH: |
7.6 - 11.6 |
| Temperature: |
25.5°C (78°F) |
| Viscosity, 300 rpm: |
38-42 cP |
|
PATENT PENDING
|
|
